This product we set up warehouse in Spain, Czech Republic,Poland and Russia.When you buy it,if you are in EU or Russia,we will ship to your country from local warehouse with fast delivery.
However，
the zip code in Spain that starts with 35, 38, 51, 52.
the zip code in France that starts with 97
the zip code in Portugal that starts with 9.
For local express company,above zone are remote area,that means there is no shipping service.Please not place order with above address,thanks.
What are our favorite features?
Flexible solar panels are increasingly being used in various settings including homes, RVs, boats, trucks, and trailers. Most homeowners are now using solar panels in attempts to reduce electricity costs. Others enjoy the convenience of having to power their electrical items when roaming around.
●Powerful panel with higher-than-average efficiency
At around 23%, this solar panel is more efficient than many average devices on the market. In addition, it comes with an integrated blocking diode, which helps prevent reverse current drain, especially at night. This ensures optimum efficiency levels.

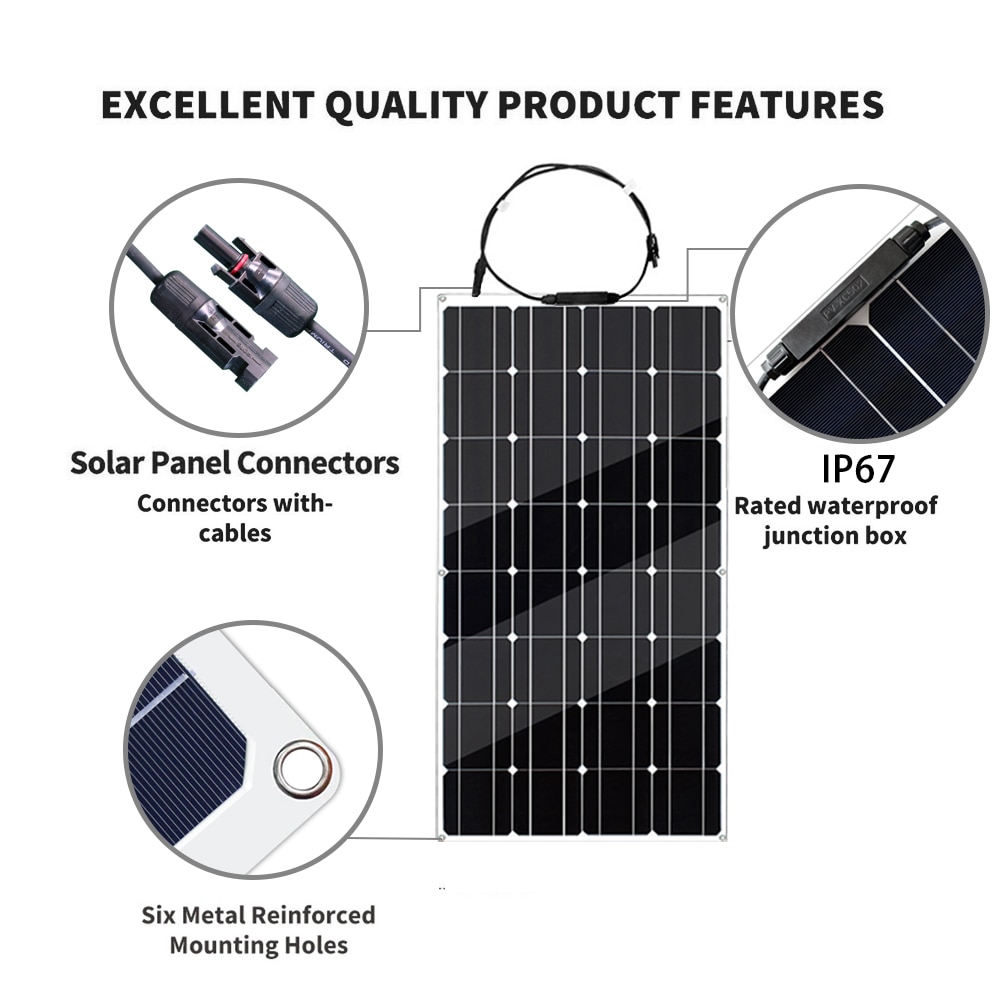

●Frameless panel for easy operation
Owing to its 0.1inch thickness and weighing just 4.45 pounds,this 100w flexble solar panel boasts a unique frameless design.You can be fixed onto the desired surface by glue, tape, grommet, or Velcro.This design ensures easy installation.Six metal-reinforced mounting holes for fixing screws,hanging and removing the panel while allowing easy transportation.
●Durable Panel made from PET material
Speaking of the construction, the panel features a special PET film, which has high-temperature resistance, anti-fouling, while still being easy to clean. The durability of this solar panel is remarkable too, thanks to its water-resistant body.
●Flexible panel for installation anywhere
As you would expect with flexible solar panels, the 100w flexible solar panel is bendable to a maximum of 20 degrees, thus encouraging mounting on curved surfaces. In fact, the body is such sturdy and flexible that it can be used on tight spaces or crowded areas that are usually out of bounds for conventional glass and aluminum panels.
Package List
100W Solar Panel=1 pcs 100W flexible solar panel
200W Solar Panel=2 pcs 100W flexible solar panel
300W Solar Panel=3 pcs 100W flexible solar panel
400W Solar Panel=4 pcs 100W flexible solar panel
500W Solar Panel=5 pcs 100W flexible solar panel
600W Solar Panel=6 pcs 100W flexible solar panel
100W Solar Kit Package List
▶100W 16V solar panel *1
▶10A 12V/24V solar charger regulator *1
▶3 meter extend cables *1
▶1 meter cable with alligator clips *1
200W Solar Kit Package List
▶100W 16V solar panel *2
▶20A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶2-in-1 PV parallel adapter *1
300W Solar Kit Package List
▶100W 16V solar panel *3
▶30A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶3-in-1 PV parallel adapter *1
600W Solar Kit Package List
▶100W 16V solar panel *6
▶50A 12V/24V solar charger regulator *1
▶3 meter extend cable *1
▶1 meter cable with alligator clips *1
▶6-in-1 PV parallel adapter *1

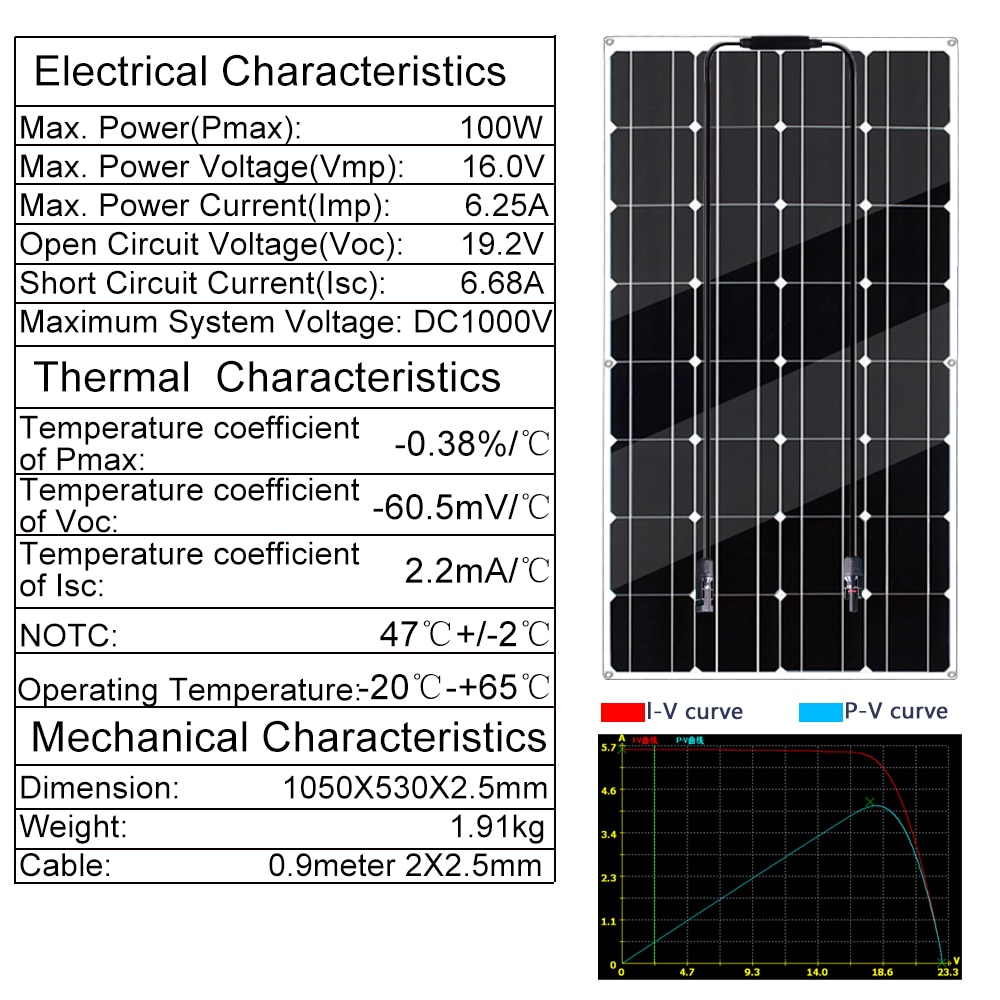

Specification
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 16.00V
Maximum Power Current (Imp): 6.25A
Open-Circuit Voltage (Voc): 19.2V
Short-Circuit Current (Isc): 6.68A
Maximum System Voltage: DC1000V
Weight: 1.91 KG
Dimensions: 1050*530*2.5mm
(The above data is based on the laboratory standard test environment)

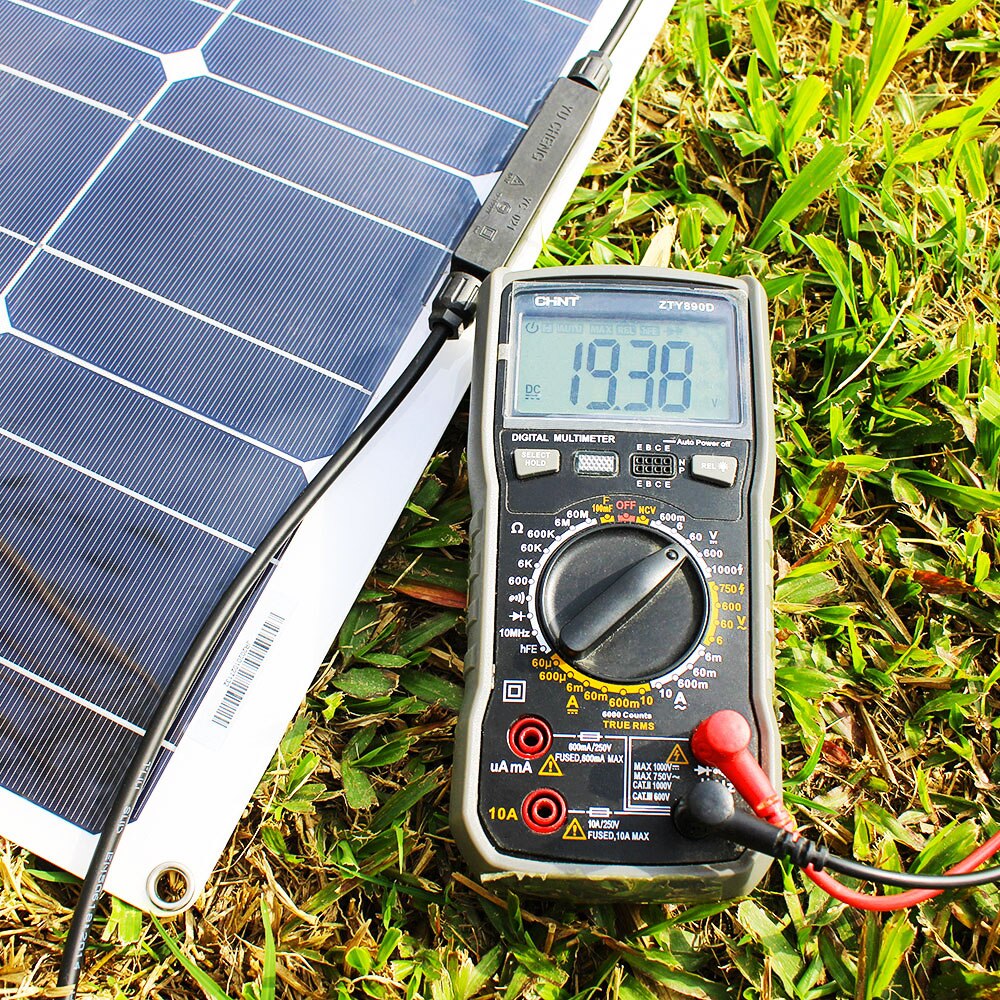

True Test
Panel Connection
1.First wiring,connect the controller to the battery.
first connect cable with alligator clips to controller by screwdriver.Then connect alligator clips(black ) to the negative pole of the battery, next connect alligator clips (red) to the positive pole of the battery,pay attention to the positive and negative poles.After correct connection, the controller will display the voltage parameters of battery.
2.Second wiring, connect the flexible solar panels to the controller.
first connect extend cable to the controller by screwdriver.Then connect connect parallel adapter to the solar panel.If there is only one panel, please ignore this step.Next connect parallel adapter to extend cable.taking care when connecting & disconnecting the connector to avoid damage.Afetr right connection,the controller will display the solar panel is charging the battery.
3. The third step is to connect the DC load to the controller
4. Forth step, connect the invertor to the battery for AC output
How to clean panel?
First, you are regular to check and look for stains and deposits on the solar modules. By using freshwater, you can remove these dirt stains, dust particles, even the occasional bird droppings, alongside other debris that stands to lessen the interaction of the sun and your panels. Fewer chances of sunlight reaching your panels will mean less energy that you can store and use later on. Using water and neutral soap, wipe the surface of the panels carefully and thoroughly.
After cleaning the equipment, thoroughly check for the wirings, the small parts, and the overall structural integrity of the equipment in order to gauge its actual condition.
